The Artec-508-W employs a single 8C woofer for low frequency reproduction. The M-34 compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control in either the horizontal and vertical position is possible thanks to the symmetrical 80° horn geometry. The cabinets can be permanently installed by way of the optional “U” brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and a pole mount socket augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.



Features

Single 8” loudspeaker
M-34 compression driver
Vertical or horizontal positioning
Threaded fixing points for wall mounts
Pole mount socket



Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

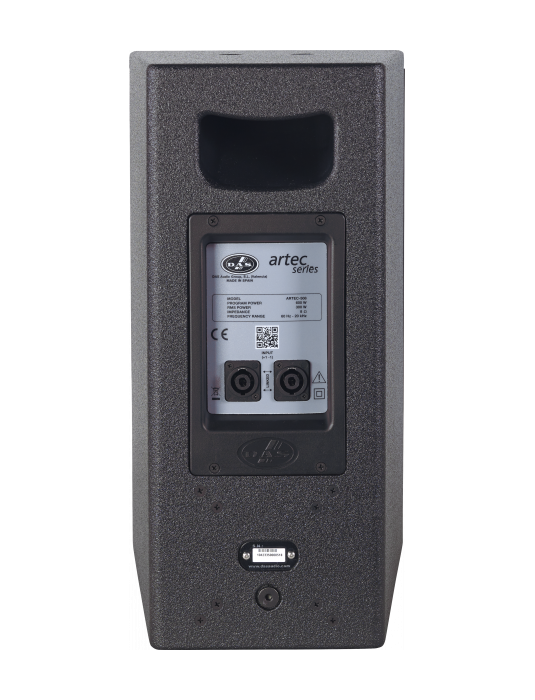

DAS Artec-508 8" Passive Speaker (Single)

649,00 €Price
Colour
  • Performance
    Frequency Range (-10 dB) 60 Hz – 20 kHz
    Horizontal Coverage (-6 dB) 80º
    Vertical Coverage 80º
    Nominal Impedance 8 ohms
    RMS Power Handling 300 W
    Peak Power Handling 1200 W
    On-axis Sensitivity 1W/1 m 91 dB SPL
    Maximum Peak SPL at 1 m 122 dB
    Recommended Amplifier DX-80-230
    DX-80-115
    Recommended Processor DSP-2040
    Connectors
    Audio Input Connector 1 x speakON NL4
    Audio Output Connector 1 x speakON NL4
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Trapezoidal
    Rigging M10 Rigging Points
    Finish ISO-flex Paint
    Depth 290 mm (11,4 in)
    Dimensions ( H x W x D ) 450 x 245 x 290 mm
    17,7 x 9,7 x 11,4 in
    Net Weight 11,5 kg ( 25,4 lb )
    Components
    LF Driver 8C
    HF Driver M-34
    Horn/Waveguide BC-88
    Shipping
    Carton Dimensions ( H x W x D ) 541 x 310 x 355 mm
    21,3 x 12,2 x 14,0 in
    Shipping Weight 13,0 kg ( 28,7 lb )
