The PA series amplifiers are designed and built to provide an affordable, quality powering solution. The wide range of models makes the series ideal for both installed or mobile sound reinforcement applications.
The amplifiers incorporate a rugged 2 unit all-steel chassis ensuring structural rigidity. The low-noise fans offer both quiet and cool operation. The amplifier incorporates rear located switches which permit, operational mode selection (bridge, stereo or parallel) and input sensitivity selection.
Applications
Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations
Features
Input Sensitivity Selector
2100 W x 2100 W at 4 Ω
Stereo/Bridged/Parallel Operation
SpeakON output connectors
Clip, protection and signal present LED indicators

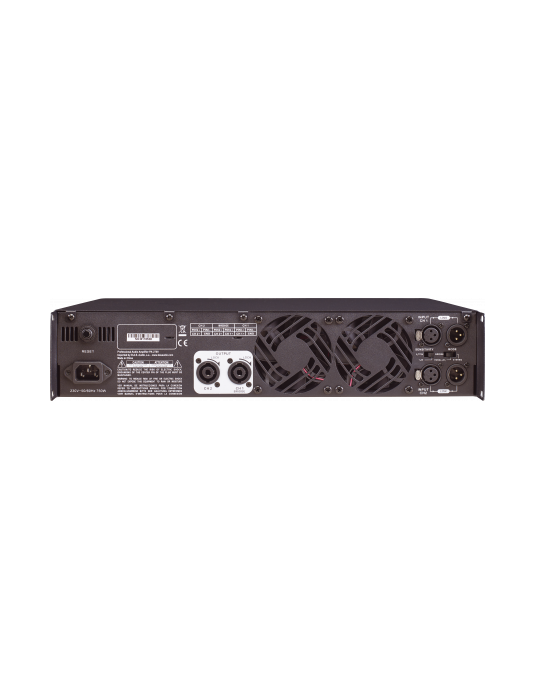

DAS PA-4000 Stereo power Amplifier
Output Power Ratings Power 8 Ohms, Both Channels Driven 2 x 1400 W Power 8 Ohms Bridged 4250 W Power 4 Ohms, Both Channels Driven 2 x 2100 W Electronics and Connectors Amplifier Channels 2 Frequency Response 20 Hz – 20 kHz, +0 – 1 dB Total Harmonic Distortion <0.5% , 20 Hz - 20 kHz Signal to Noise Ratio > 100 dB @ 20 Hz – 20 kZ Voltage gain 37 dB Damping Factor > 200 @ 10 Hz – 400 Hz Controls Power On/Off, Gain Pots Cooling Internal heat sinks with forced air: Fan cooled Amplifier Protections Protection against short circuits, no-load, on/off muting, RF interference. LED Indicators Power, Protection, Signal, Clip Audio Signal Input Connector 2 x Female XLR Audio Signal Loop Thru Connector 2 x Male XLR Speaker Output Connector 2 x speakON Current Draw 230 V / 115 V 15.2 A / – Dimensions-Weight Dimensions ( H x W x D ) 88 x 482 x 294 mm
3,5 x 19,0 x 11,6 inNet Weight 19,5 kg ( 43,0 lb ) Shipping Carton Dimensions ( H x W x D ) 160 x 580 x 540 mm
6,3 x 22,8 x 21,3 inShipping Weight 21,0 kg ( 46,2 lb )
