The Q-3 is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.
Features
Passive system
Extruded aluminum enclosure
1 x 3”, 3P full-range speaker
Dispersion H x V: 120º x 120º
SPL peak: 106 dB
Multi-tap 100/70V transformer included
Low/high-impedance operation
Applications
A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

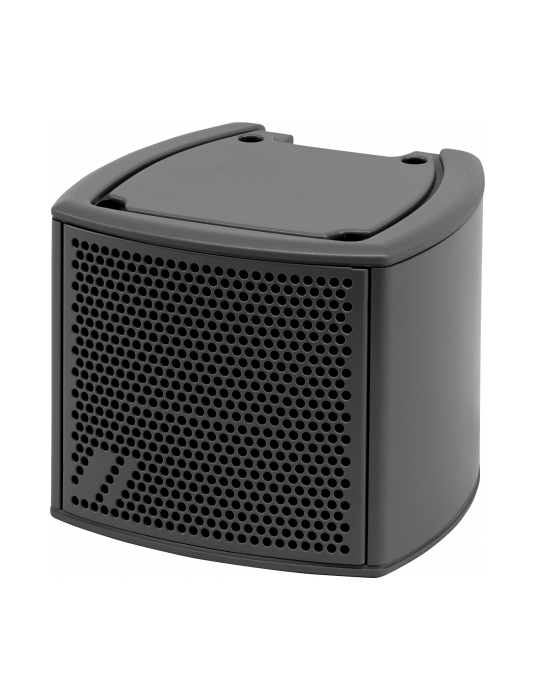

DAS Q-3T 3" 100v Line Passive Speaker (Single)
€209.95Price
Colour
Performance Frequency Range (-10 dB) 150 Hz – 20 kHz Horizontal Coverage (-6 dB) 120º Vertical Coverage 120º Nominal Impedance 8 ohms Transformer Taps 70 V 3.5 W – 7.5 W – 10 W Transformer Taps 100 V 7.5 W – 15 W – 20 W RMS Power Handling 20 W Peak Power Handling 80 W On-axis Sensitivity 1W/1 m 87 dB SPL Maximum Peak SPL at 1 m 106 dB SPL Recommended Amplifier IA-402
IA-404Recommended Processor DSP-226 Connectors Audio Input Connector 2-way Phoenix 2.54 mm Enclosure Enclosure Construction Aluminum Color White IP Rating IP66 Depth 125 mm (4,9 in) Dimensions ( H x W x D ) 105 x 125 x 125 mm
4,1 x 4,9 x 4,9 inNet Weight 1,6 kg ( 3,5 lb ) Components MF Driver 3P
