The IMG Stageline STA-300D provides you with up to 350W of clean, efficient Class-D power. With two channels, you can operate the amp in either stereo or bridged mode.
- 2 operating modes can be selected (stereo or bridged)
- Limiter function can be activated as required
- 2 level controls
- Temperature-controlled fan
- Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
- Each channel with LEDs for indicating overload (clip) and signal

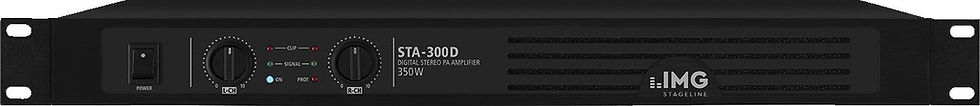

IMG STAGELINE STA-300D Power Amplifier
€329.95Price
Peak output power 350 W Power rating 300 W Power rating at 4 Ω 2 x 150 W Power rating at 8 Ω 2 x 100 W Power rating with 8 Ω bridged operation 1 x 300 W Channels 2 Inputs 1 V/12 kΩ Frequency range 20-20,000 Hz Integrated limiter yes S/N ratio > 96 dB Crosstalk attenuation > 70 dB THD < 0.05% Mains voltage ~ 230 V Mains frequency 50 Hz Power consumption, operation 510 VA Admiss. ambient temp. 0-40 °C Width 482 mm Height 52 mm Depth 290 mm Rack units, RU 1 Weight 3.7 kg Connections 1 x 3-pole XLR L/R 1 x 6.3 mm jack L/R
1 x SPEAKER L/R
Packing dimensions (W x H x L) 0.38 x 0.12 x 0.55 m Gross weight 4.75 kg Net weight 3.84 kg
