A 4 Zone PA Matrix Mixer Amplifier from Moncacor.

Features

120 W per zone
4 zones, can be controlled individually with 2-way tone control
4 adjustable mic/line inputs with 3-way equalizer and phantom power, to be activated as required
4 adjustable line inputs
Talkover (channel 1)
Adjustable monitor function
1 connection for zone paging microphone PA-M4RC
4 connections for wall module PA-M1WP
482 mm (19") rack installation

MONACOR PA-M412 4 Zone Matrix Mixer Amp (120w Per Zone 100v Line)

€1,099.95

Quantity

Available To Order With Lead Time. Call For More Details

Peak output power	4 x 170 W
Power rating	4 x 120 W
Channels	8
Zones	4
Inputs	2.5 mV/20 kΩ (mic), 2 V/20 kΩ (line)
Frequency range	20-20,000 Hz
Equalizer bass	±12 dB/80 Hz (channels 1-4) ±15 dB/80 Hz (zones 1-4)
Equalizer midrange	±12 dB/2.5 kHz (channels 1-4)
Equalizer treble	±12 dB/12.5 kHz (channels 1-4) ±15 dB/12 kHz (zones 1-4)
S/N ratio	> 70 dB
THD	< 0.1%
Phantom power	24 V
Mains voltage	~ 230 V
Mains frequency	50 Hz
Power consumption, operation	860 VA
Admiss. ambient temp.	0-40 °C
Width	420 mm
Height	88 mm
Depth	320 mm
Rack spaces, RS	2
Weight	6.2 kg

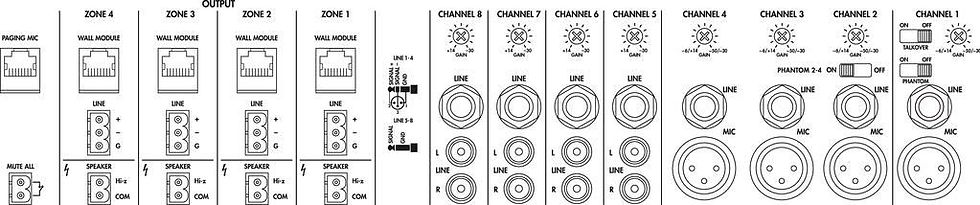

Connections	4 x XLR, bal. (mic 1-4), 4 x 6.3 mm jack (line 1-4), 4 x 6.3 mm jack (line 5-8), 4 x RCA L/R (line 5-8), 1 x RJ45 (push-to-talk microphone), 4 x RJ45 (remote in), screw terminal (speakers)
Packing dimensions (W x H x L)	0.4 x 0.53 x 0.17 m
Gross weight	7.37 kg
Net weight	6.21 kg

Specifications
