Simple, Reliable, And Portable.
Whether you are a musician, producer, or podcaster on a tight budget, the AudioBox USB® 96 audio interface is for you! This simple, handy little audio/MIDI interface has just the right features for basic recording needs, allowing you to plug in and start recording up to 24-bit, 96 kHz audio right away. Bus-powered and built to travel, the AudioBox USB 96 makes recording easy.
Just The Right Size.
The AudioBox USB 96 audio interface’s two front-panel combo mic/instrument inputs make it ideal for singer/songwriters, podcasters, and guitar or guitar-bass collaborations. Simply connect a couple of mics and you have an easy-to-use stereo recording system. A mix control lets you control the level between the input signal and computer playback, without hearing annoying delays. You also get a pair of balanced line-level outputs, an ultra-loud, crystal-clear headphone out, plus MIDI I/O, so you can connect your favorite synth or MIDI controller. The result is a simple, affordable, mobile recording solution.
Roadworthy And Ready To Travel.
Here is a mobile audio interface in the best sense of the term. We gave the AudioBox USB 96 a heavy-duty steel chassis so it can take a serious pounding and remain completely reliable. Its screaming-loud headphone output ensures you can hear your music loud and clear, even in noisy locations. And it’s USB 2.0 bus-powered, so you can record with it anywhere you can use a laptop. Simply drop it in your laptop bag or slap it on a tabletop.
World-class Recording Software Included.
While the AudioBox USB 96 audio interface works with virtually all macOS® and Windows® audio-recording software, it comes with a free license for PreSonus®’ Studio One® Artist DAW, giving you a complete recording solution. Built by creative people for creative music production, Studio One is easy to learn and enables you to compose, record, and produce your masterpiece without getting distracted by the tools. Studio One also enjoys a robust online community of enthusiastic and helpful users you can turn to for advice. You also get Ableton® Live Lite.
Built For The Studio And The Road.
Whether you're just getting into recording or are a veteran producer who wants to go mobile, the AudioBox USB 96 audio interface will give you great sound in a bus-powered, rugged chassis that's ready to hit the road when you are. The perfect companion for any recording software, the AudioBox USB 96 comes equipped with Studio One Artist to provide you with a complete recording solution right out of the box.

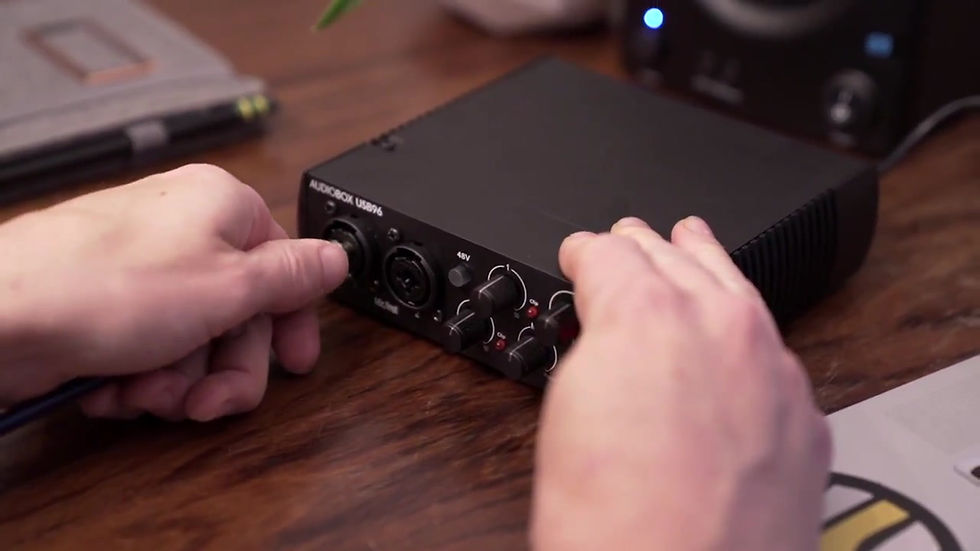

PreSonus Audiobox USB 96
Microphone Preamp
Type XLR Female Balanced Frequency Response (±3.0 dB) 20 Hz to 20 kHz Input Impedance (Balanced) 1200Ω THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008% S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB Common Mode Rejection Ratio (1 kHz, 55 dB Gain) > 45 dB Gain Control Range (± 2 dB) +6 dB to +52 dB Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu Phantom Power (±2 VDC) +48 VDC Instrument Input
Type ¼" TS Female Unbalanced Input Impedance 0.5 MΩ Gain Control Range (± 2 dB) +2d B to +48 dB Line Outputs
Type ¼" Balanced Output Impedance 51Ω Headphone Output
Type ¼" TRS Active Stereo Maximum Output 60 mW/Ch @ 60Ω Load Frequency Response (±1.0 dB) 20 Hz - 30 kHz MIDI I/O
Type Dual 5-pin Female DIN Digital Audio
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB Bit Depth 24 Reference Level for 0 dBFS +4 dBu Supported Sample Rates (kHz) 44.1, 48, 88.2, 96 Power USB 2.0 bus-powered Physical
Dimensions 1/3U (steel chassis) Height 5.5” (139.7 mm) Depth 1.75" (44.45 mm) Width 5.5” (139.7 mm) Weight 1.3 lbs (0.59 kg)
